Guangzhou Rt Air Filtech Co.,LtdAbout UsRoom 402, Yuanfeng Building, No.83 Taoyuan West Road, Tianhe District, GuangzhouGuangzhou RT Air Filtech Co., Ltd. is a production-oriented enterprise integrating R&D, production, sales, and service. It is committed to offering related ranges of air filters for industries such as electronics factories, semiconductors, liquid crystal display, bio-pharmaceutical, food, petrochemical industry, clean room, hospital, rail transit, spray booth, commercial and residential construction. With high-tech equipment, experienced technicians, and perfect testing equipment, from design, research and development, production, quality control to finished products, we can achieve the essence and quality and are high
· glass fiber, filter bag structure, high dust capacity, low resistance;
· the fiberglass filter material is made of non-aldehyde resin adhesive, which has no risk of formaldehyde release, but slightly less compressibility;
· innovative glass material is more solid because of chemical fiber protection on the surface, and the filter is not easily damaged, greatly improve the use-value;
· innovative glass material has a higher dust capacity and longer service life than ordinary filter material.
Product specification:
Model
Size(mm)
Rated air volume（m3/h）/initial resistance（Pa）
Filter area(m²)
Air Velocity(m/s)
Number of bags
RT-BX05
287*592*381
750/55
1.6
1.23
3
RT-BX05
287*592*500
750/55
2.1
1.63
3
RT-BX05
490*592*600
750/55
1.82
1.39
6
RT-BX05
490*592*500
750/55
4.8
1.19
6
RT-BX05
592*592*381
750/55
4.1
1.51
8
RT-BX05
592*592*500
750/55
4.2
1.59
6
RT-BX05
592*592*500
750/55
5.4
1.99
8
RT-BX05
592*592*600
750/55
6.4
2.34
8
RT-BX05
592*592*600
750/55
7.9
2.85
10
Note: other specifications can be customized according to requirements
The glass fiber pocket filter is made of a special very fine glass fiber with a fire rating of ul-900class-2, ideal for fire certification enterprises. The glass fiber bag filter is the main filter for commercial and industrial ventilation and air-conditioning systems, and the pre-filter for cleanroom ventilation and air-conditioning systems.

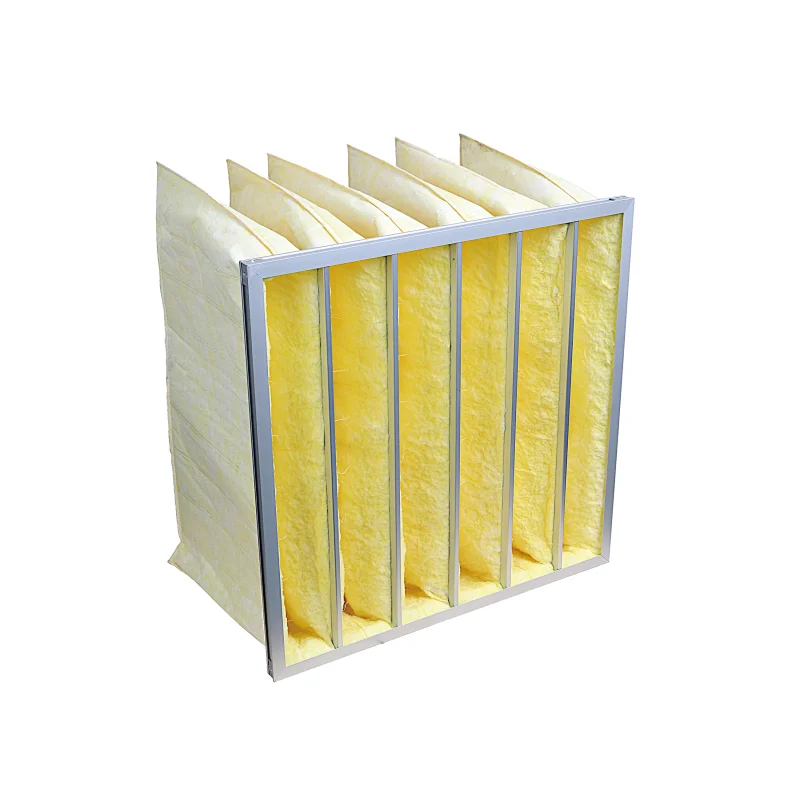

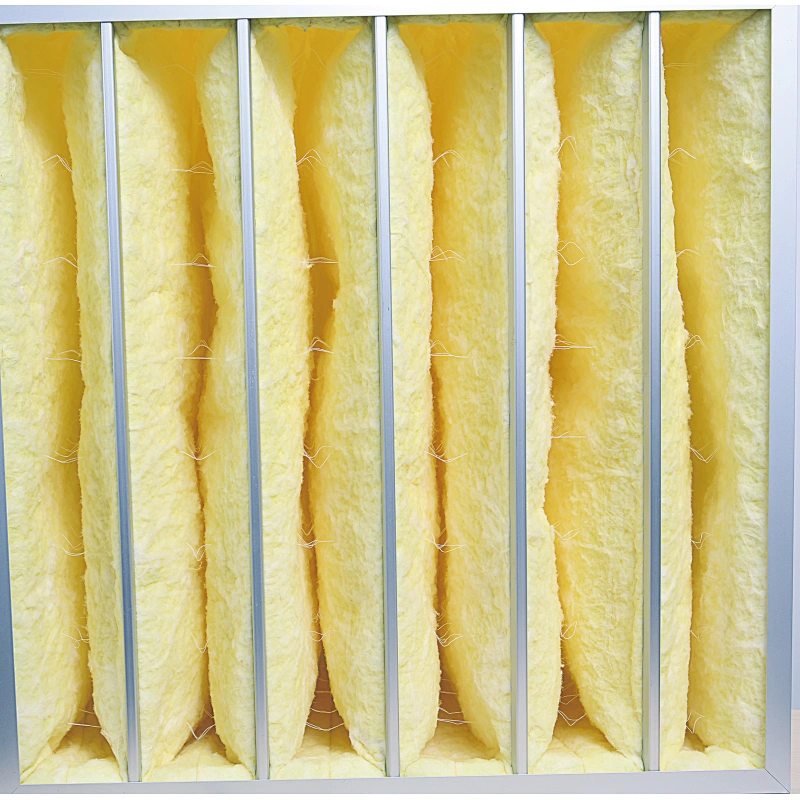

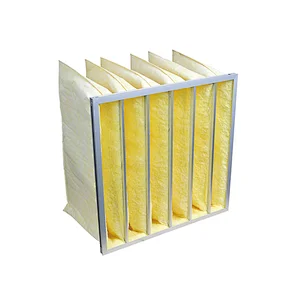

Glass fiber pocket filter
B-3
11.00~13.00
The glass fiber pocket filter is made of a special very fine glass fiber with a fire rating of ul-900class-2, ideal for fire certification enterprises. The glass fiber bag filter is the main filter for commercial and industrial ventilation and air-conditioning systems, and the pre-filter for cleanroom ventilation and air-conditioning systems.
