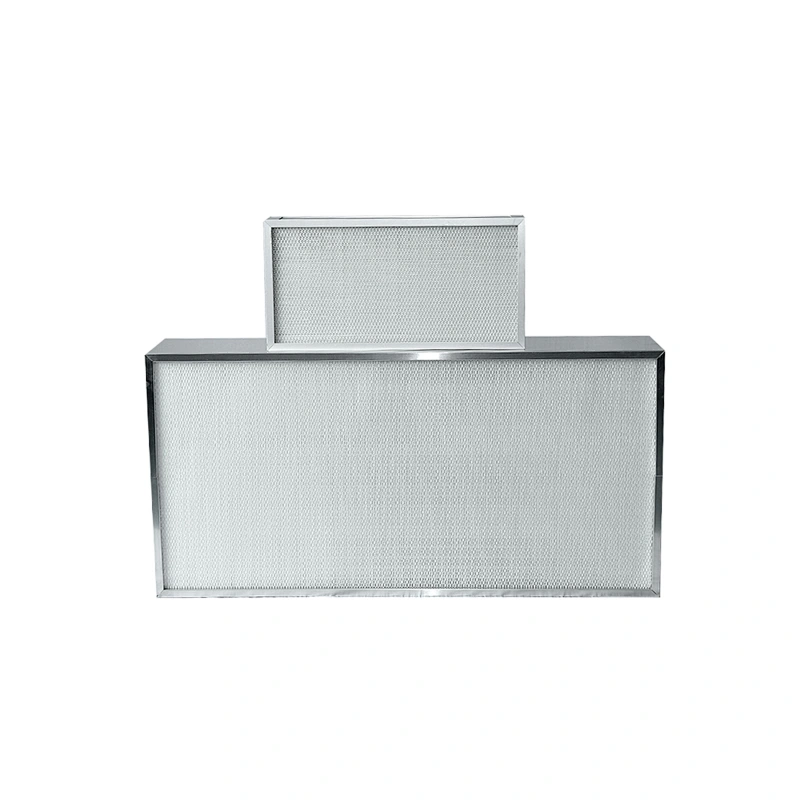

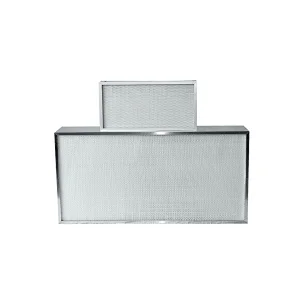

Product Usage
Ultrafine glass fiber filter paper media, hard metal frame, and metal double-sided protection net, the special structure makes the temperature resistance and humidity resistance has higher stability. It is mainly used in automotive spray grills, high fire protection requirements, and mid-end filtration of ventilation systems in high-temperature environments.
Features:
· large filter area, large air volume, high efficiency, humidity resistance up to 100%, lightweight, small volume, convenient installation;
· high dust capacity, long service life, low operation cost, 100% silicon free, solvent vapor resistant;
· double-sided metal protection net, which is conducive to the safety of the filter and easy to operate;
· non-drop fiber textile glass fiber rope seal strip can maintain thermal stability when the temperature is raised;
· temperature resistance 250℃, instant temperature resistance 300℃.
Specification:
| Model | size | Initial resistance(Pa) | Rated air Size(m3/h) | Air Velocity（m/s | Filter efficiency |
| RT-HMP01 | 610*305*55 | 200 | 2000 | 0.55 | H12 |
| RT-HMP02 | 484*484*220 | 200 | 2000 | 0.55 | H12 |
| RT-HMP03 | 610*610*220 | 200 | 2000 | 0.55 | H12 |
Note: other specifications can be customized according to requirements
Technical datasheet
| Temperature-resistant | 250℃ |
| Temp.short peaks | 300℃ |
| Moisture resistance (relative humidity) | ≤ 100% RH |
| Filter object | ≥0.5μm、≥0.3μm 、≥0.1μm Coarse dust and foreign bodies |
| Filter efficiency | H13、H14、U15、U16、U17(EN779) |
