Product Usage

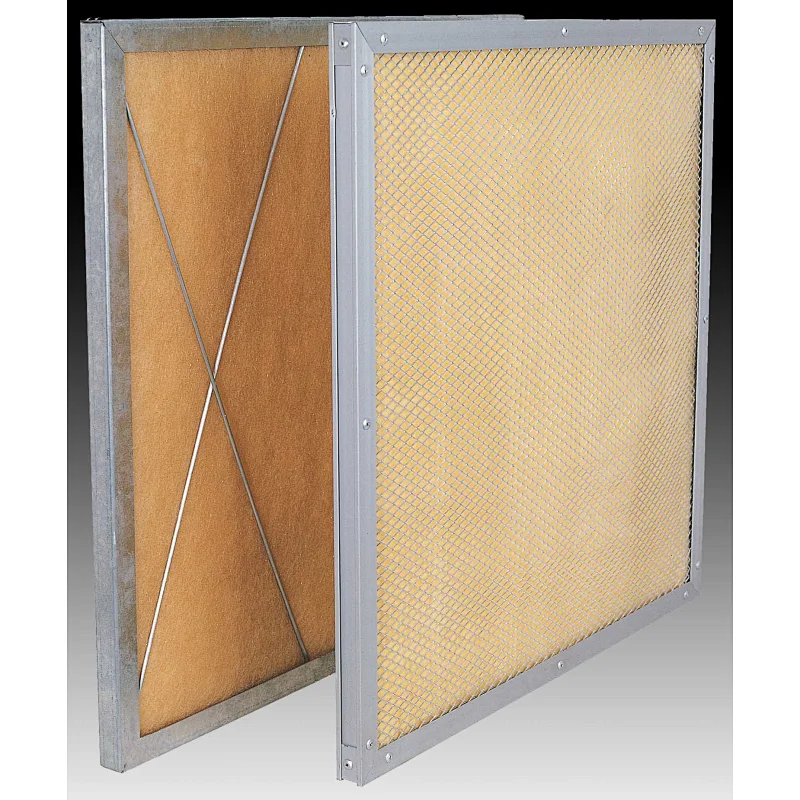

A high-temperature resistant plate filter can effectively filter the tar, soot, dust, and other particles produced in the high-temperature oven to prevent damage to the surface paint quality. It is mainly applied to automotive spray baking room, high-tech electronics, military aerospace coating field high fire requirements, and high-temperature environment ventilation system front filter.
Features:
· the filter material is made of long glass fiber superposed in a non-fabric way, and is fixed with aluminum expansion net, which is not easy to deform;
· made of special organic synthetic fiber with strong heat resistance and temperature resistance up to 300℃;
· no fiber breakage or falling;
· able to effectively filter tar, soot, dust, and other particles in high-temperature ovens to prevent the surface oil from being damaged Paint quality.
Specification:
| Model | Size | Initial resistance(Pa) | Rated airflow(m³/h) |
| RT-HT21 | 595*595*21 | 40 | 3400 |
| RT-HT25 | 595*595*25 | 40 | 3400 |
| RT-HT46 | 595*595*46 | 40 | 3400 |
Note: other specifications can be customized according to requirements
Technical datasheet
| Name | Fiberglass high-temperature panel filter |
| Frame | Galvanized frame, aluminum frame, stainless steel frame |
| Filter material | Glass fiber cotton or special organic synthetic fiber |
| Filter object | ≥5mium Coarse dust and foreign bodies |
| Filtration Class | G3、G4 |
| Temperature resistance | 300℃ |
