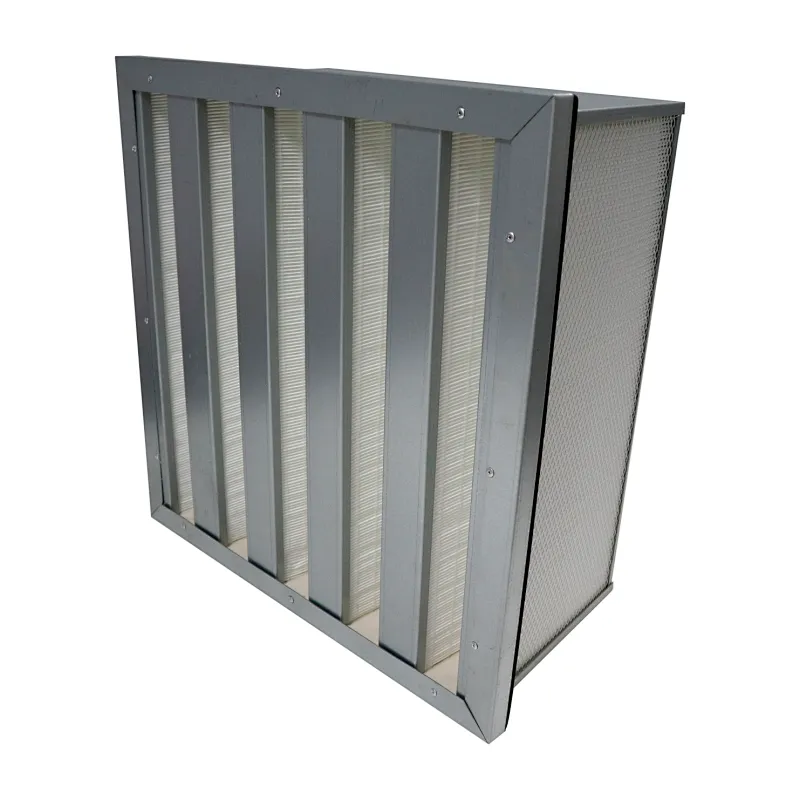

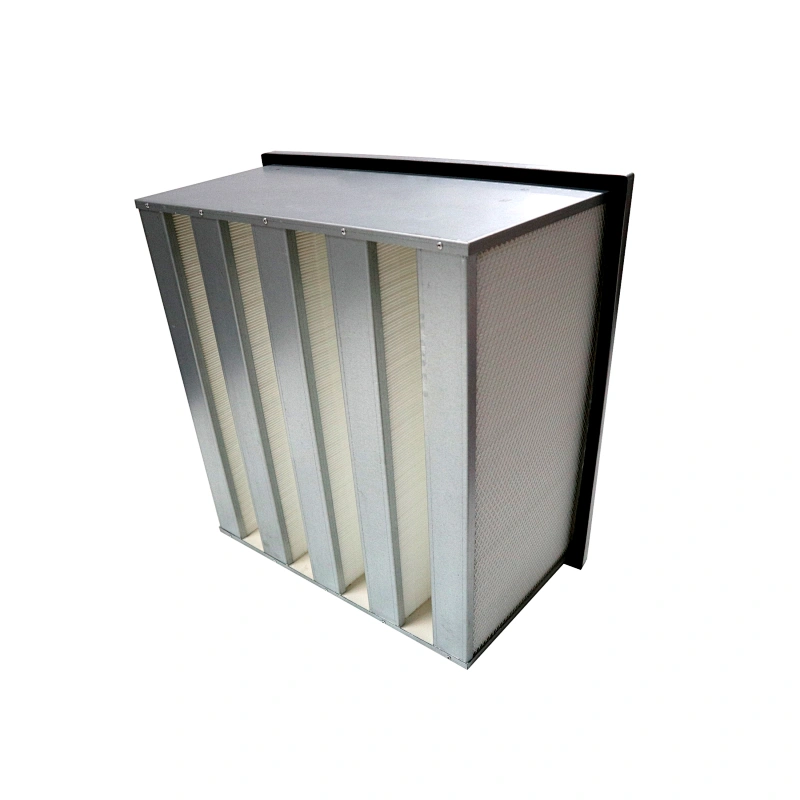

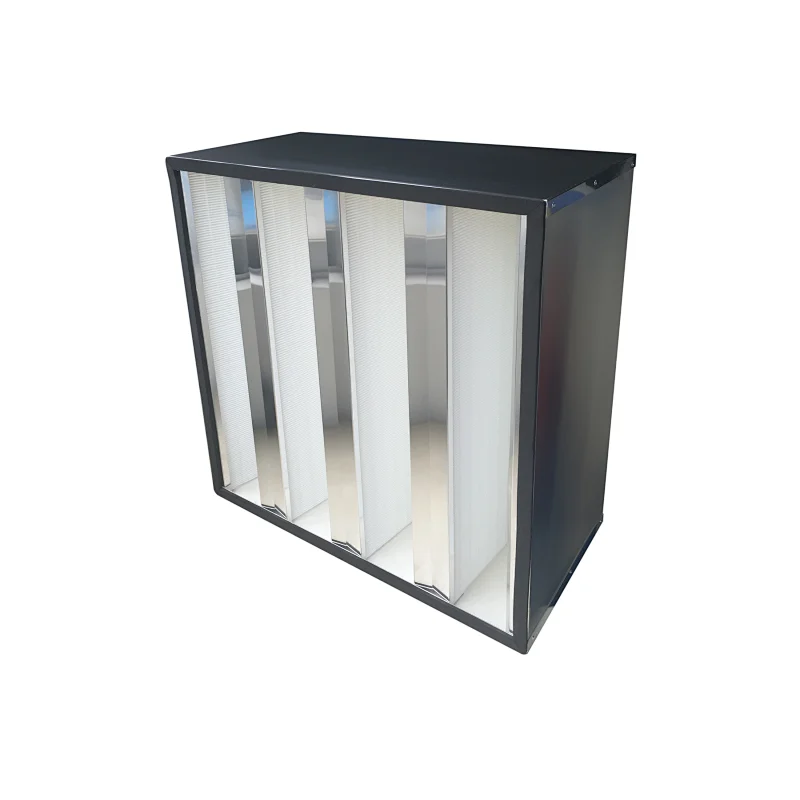

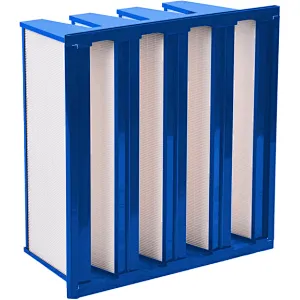

V shape compact filter

Model NO.:: H6
Price:: US $ 30.00-50.00 / pieces
Delivery:: FOB
Minimum order quantity:: 10 pieces
Supply Ability:: 500 pieces / Week
Country of Origin:: Guangzhou,China
Stock Time:: 15 Days

V shape compact filters are widely used for intermediate or terminal filtration of commercial and industrial ventilation and air conditioning systems due to their unique mechanism design and stable and excellent filtration performance.

Product Description

Product features:

· The filter material uses high-quality ultra-fine glass fiber filter paper or polypropylene filter material, and the unique V-shaped structure can minimize the structural resistance

· better air permeability, longer service life, not only effectively reduce the cost, but also conducive to the overall environment of air permeability;

· the composite material has stronger toughness, corrosion resistance, shorter production cycle, and better recovery, etc. Widely used in various industries, it is also easier for waste treatment and renewable use;

· unique seamless sealing technology, non-deformation, non-leakage production process.

Product specification:

Model	Length（mm）	Width（mm）	Depth（mm）	Rated air volume(m³/h)	Initial resistance(Pa)
Model	Length（mm）	Width（mm）	Depth（mm）	Rated air volume(m³/h)	Initial resistance(Pa)
RT-ABS01	592	592	292	3400	≤220
RT-ABS02	592	490	292	3000	≤220
RT-ABS03	592	287	292	1700	≤220
RT-TK04	1220	610	90/93	2000	≤220

Note: other specifications can be customized according to requirements

Technical datasheet:

Temperature resistance	80℃
Moisture resistance (relative humidity)	≤ 100% RH
Frame	Aluminum alloy frame（21mm、25mm、46mm） ABS Plastic frame ABS（25mm） Galvanized iron frame（21mm、25mm、46mm）
Rated Air Velocity	2.5m/s
Suggested final resistance	500Pa
