Plastic Frame V Bank Filter

V Bank Air Filter Technical Specification

Dimensions & Technical Details

Note: other specifications can be customized according to requirements

Features

• Extra long service life
• Fiberglass media
• High burst resistance
• Large surface area
• Fits all commonly used filter frames
• High efficiencies at low pressure drops

Application

• Paint Booth in Automotive Industry
• Power Plants
• Food Production Industry
• Hospital Operating Room Units
• Pharmaceutical Industry

How to make a V Bank HEPA Filter?

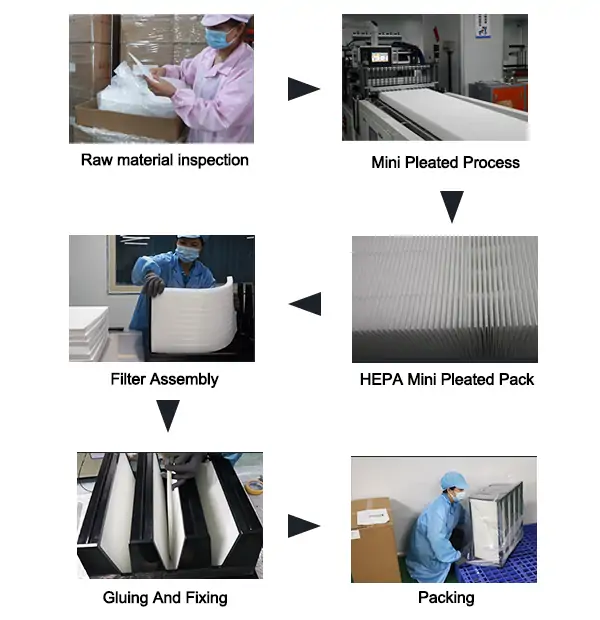

While it's possible to manufacture V-Bank filters on a smaller scale, it's a complex process that typically requires specialized equipment and expertise. Here's a general overview of the steps involved:
1. Media Selection: Choosing fiberglass or synthetic filter media. Then check the filter media's weight, thickness, width, and so on. Cutting down a portion of the material for backup inspection
2. Pleating Process: The paper media is pleated into mini folds to maximize surface area and minimize pressure drop. The spacing between pleats is carefully controlled to optimize airflow and filtration efficiency.
3. Filter Assembly: The pleated media is then attached to a rigid core and enclosed in a durable frame.
4. Gluing And Fixing: Fill the edges of the media pack thoroughly with glue and clean up any spilled residue. The bent media pack also needs to be stabilized with a specific tool and then dried out
5. Packing: First packaged in PE bags, labeled, and placed with the factory report can be shipped to the warehouse waiting for shipping.
6. Sampling: The quality control department randomly selected a filter for a full inspection. Some products will be fully inspected

What is V bank filter？

V Bank Filter, also known as W-type HEPA Filter and Compact filter, mainly comprises filter media pack, frame, protective grille, sealing material, and connecting parts.

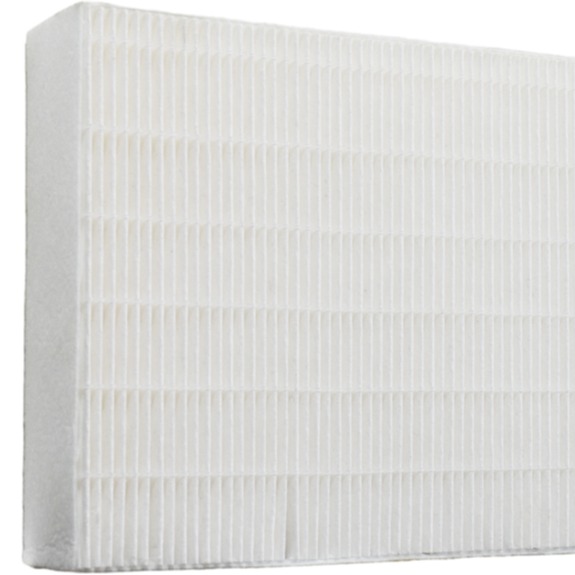

• Filter media pack: It mainly adopts high-efficiency materials such as glass fiber filter paper and polyester fiber filter paper, which can effectively capture small particles with a large specific surface area and good permeability.
• Protection grille: It is usually made of plastic strips in parallel grilles, cross grilles, and other structures to prevent the filter media from being displaced, damaged, or falling off by the airflow impact.
• Frame: made of ABS plastic or metal to hold the filter media pack in place and provide strength and stability to the filter.
• Connecting parts: flanges, clasps, etc., so that the V bank HEPA filter can be smoothly connected with the ventilation system or other equipment to ensure the normal flow of air into and out of the filter.

V Bank Filters Replacement Cycle

Sub-HEPA Filter (E10-E12): When the resistance exceeds the rated initial resistance of about 100Pa, or reaches 2 times the design initial resistance, it needs to be replaced. Its regular replacement cycle is half a year to 1 year. if the front-end filter performance is good, the filter under less pressure can be replaced once a year.

HEPA Filter (H13-H14): when the resistance exceeds the rated initial resistance of about 160Pa, or reaches 2 times the design initial resistance, nit needs to be considered for replacement. The general replacement cycle is 1-3 years.

V Bank HEPA Filter VS Mini Pleated HEPA Filter
