Product Usage

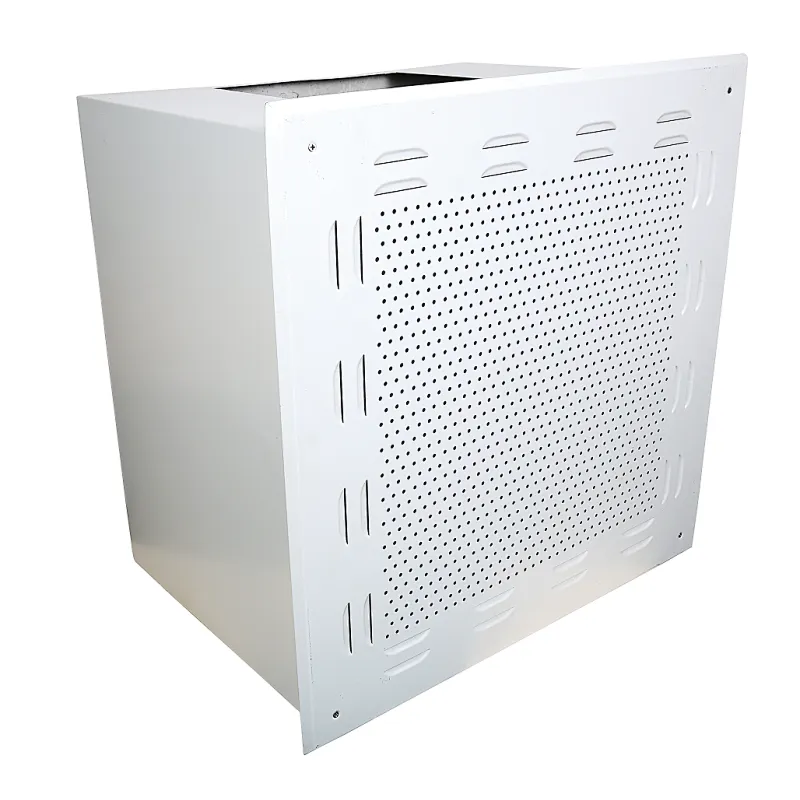

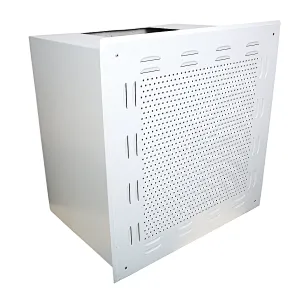

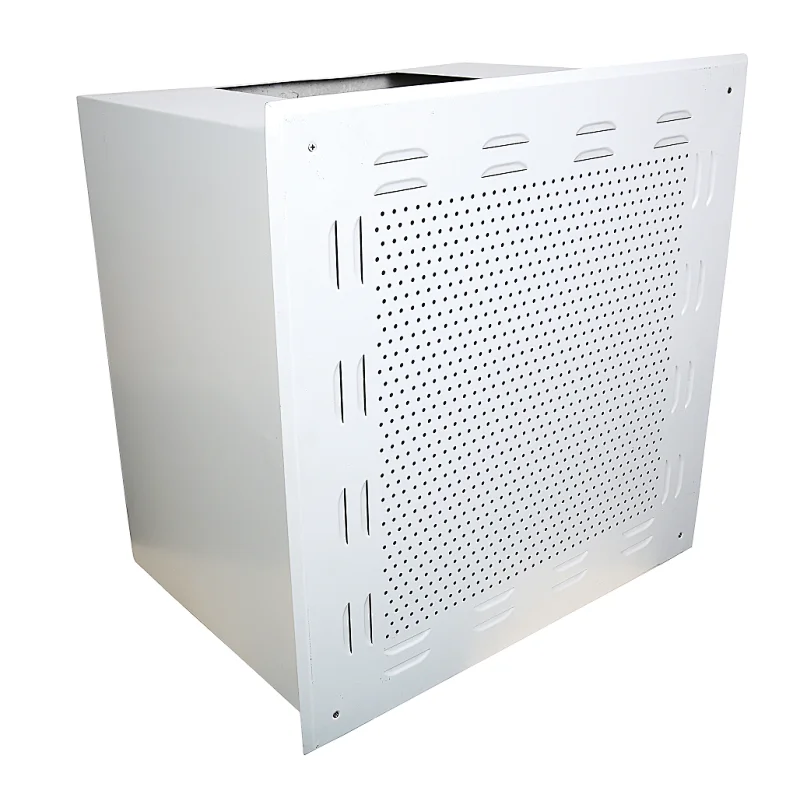

The HEPA Air Supply is an ideal terminal filter device for the purification air conditioning system of thousand, ten thousand and one hundred thousand levels, which can be widely used in the purification air conditioning system of medicine, health, electronics, chemical industry and other industries. The high efficiency air supply port is used as the terminal filtration device for the renovation and construction of 1000-300000 grade clean rooms, which is the key equipment to meet the purification requirements. The high efficiency air supply port includes plenum box, diffuser plate, high efficiency filter.
Features:
· the static pressure box is made of low carbon steel, and the high-efficiency filter and the static pressure box are integrated;
· a regulating valve is arranged at the inlet of the static pressure box to adjust the air supply uniformity and static pressure effect;
· lightweight, easy installation, especially suitable for aluminum alloy keel type clean room.
Specification:
| Model | Outline dimension(mm) | Airflow(m³/h) | Filter specification(mm) | Interface size（mm） |
| RT-AS320 | 380*380*550 | 500 | 320*320*220 | 200*200 |
| RT-AS484 | 540*540*550 | 1000 | 484*484*220 | 320*200 |
| RT-AS610 | 670*670*500 | 1000 | 610*610*150 | 250*250 |
| RT-AS820 | 880*660*500 | 1200 | 820*600*150 | 320*250 |
| RT-AS726 | 780*540*550 | 1000 | 726*484*220 | 500*200 |
| RT-AS630 | 690*690*500 | 1500 | 630*630*220 | 500*200 |
| RT-AS915 | 970*670*500 | 1500 | 915*610*150 | 400*250 |
| RT-AS968 | 1030*540*550 | 2000 | 968*484*220 | 500*250 |
| RT-AS1220 | 1280*670*500 | 2000 | 1220*610*150 | 500*250 |
Note: other specifications can be customized according to requirements
