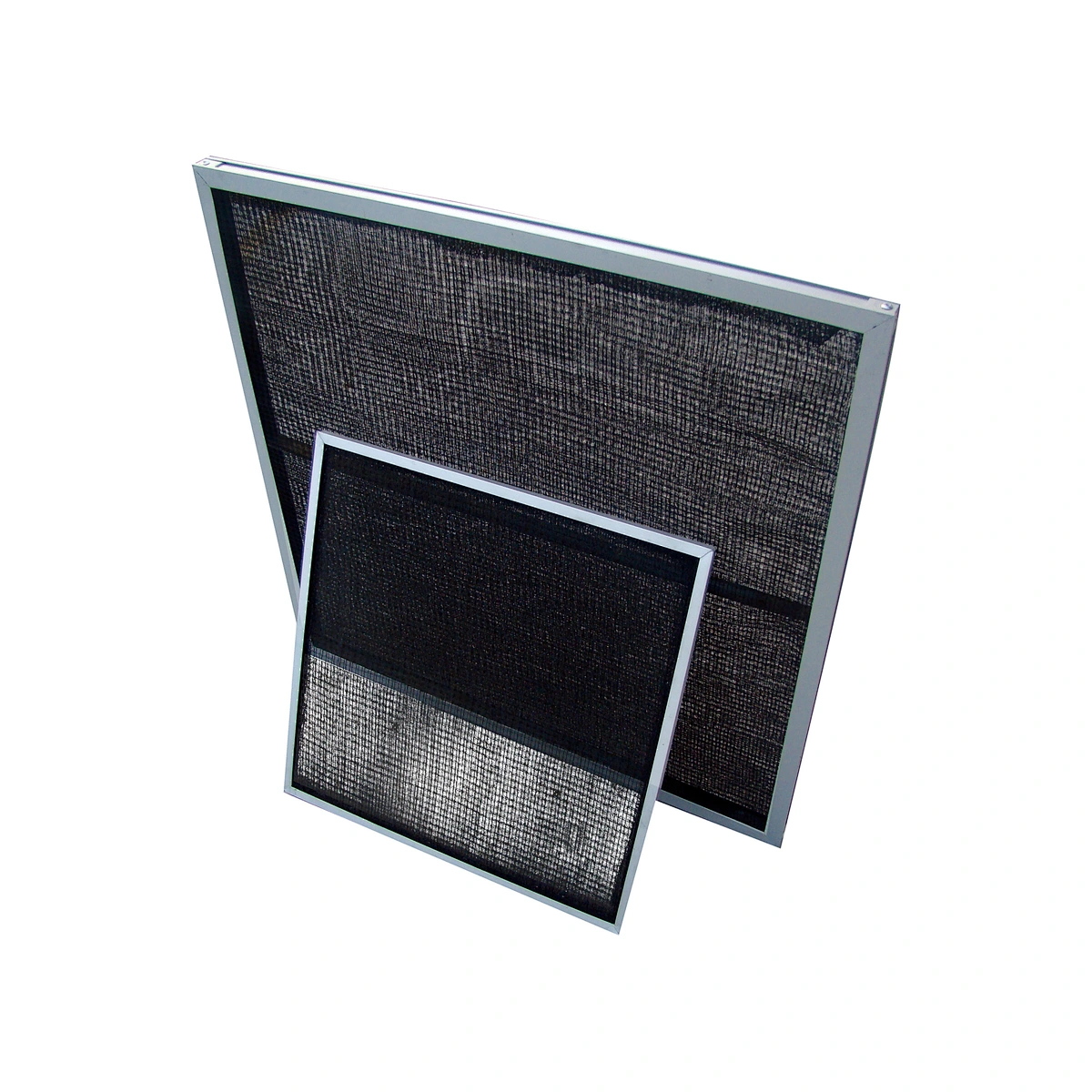

Nylon Mesh Pre Filter
Construction
Nylon mesh air filters are usually made of nylon fibers and have a microporous structure that effectively traps particles in the air. The filter material can be black or white nylon net, braided by polyamide monofilament, with wear resistance, acid and alkali resistance, corrosion resistance and other characteristics, long service life. In addition, the outer frame of the filter is generally made of aluminum alloy, galvanized iron frame, or stainless steel, and the design is lightweight and easy to clean and replace
Features
▸Low pressure drop;
▸Strong structure;
▸Washable;
▸Long Service life.
Application
| Technical Specification | ||||||||||
| Filter Type | Panel Filter | |||||||||
| Filter Class | G2 | |||||||||
| Filter Media & Seperator | Nylon Mesh | |||||||||
| Frame Material | Aluminium / Galvanised | |||||||||
| Final Resistance | 250Pa (Suggestion) | |||||||||
| Temperature Resistance | 80°C | |||||||||
| Humidity Resistance (Relative Humidity) | 80%RH | |||||||||

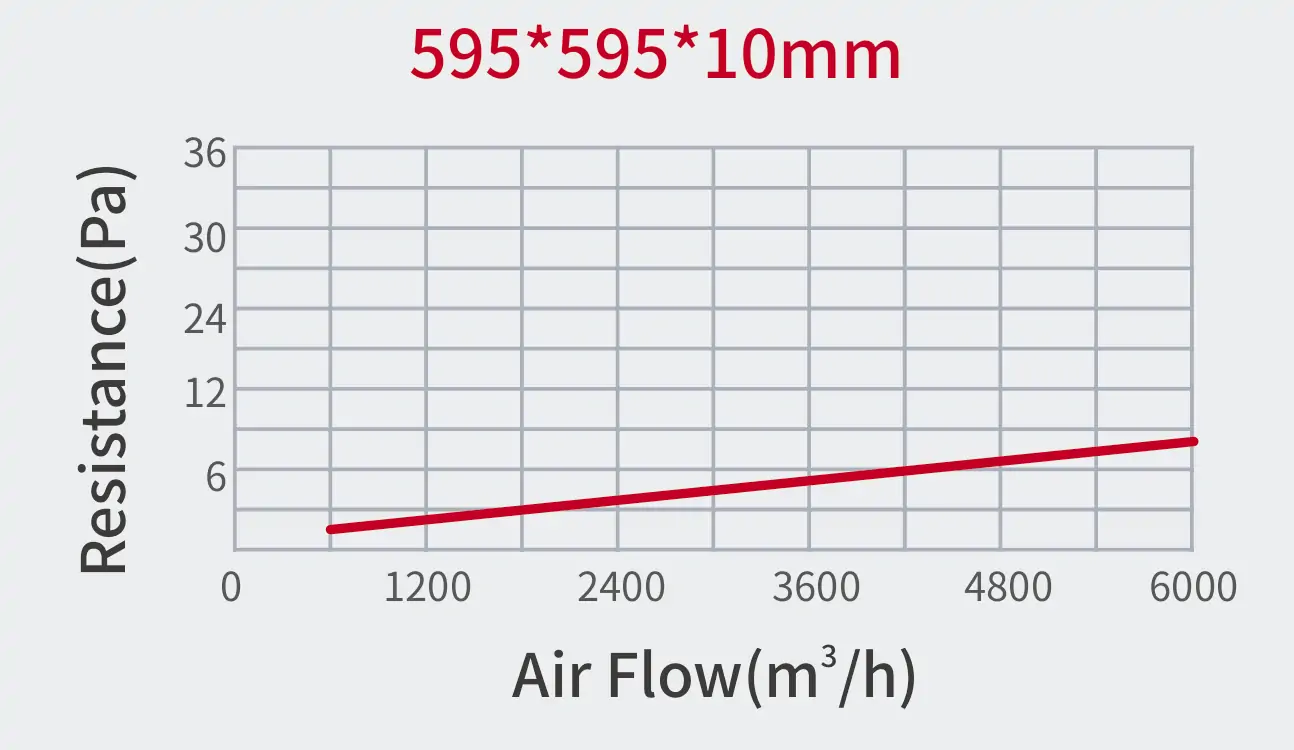

| Curve of Air Flow and Resistance | ||||||||||
 | ||||||||||
Dimensions & Technical Details | ||||||||||||
Depth （mm） | Size (mm) | Rated Airflow (m³/h) | Rated Air Velocity (m/s) | Initial Resistance(Pa) | ||||||||
| G2 | ||||||||||||
| 10 / 21 | 595×595 | 5400 | 4.0 | <2 | ||||||||
| 495×595 | 5000 | 4.0 | ||||||||||
| 495×495 | 4500 | 4.0 | ||||||||||
| 295×595 | 3000 | 4.0 | ||||||||||
How to Clean Nylon Mesh Air Filter?
First, remove the nylon mesh filter from the equipment according to the equipment manual or operating guide. During the removal process, take care to avoid scratching the filter surface or other parts of the device.
Use a vacuum cleaner or soft brush to gently remove dust and impurities from the surface of the filter. If there is much dust, rinse with clean water or rinse with warm water (temperature does not exceed 50 °C).
If there are stubborn stains or grease on the filter, it can be cleaned with a neutral detergent. Soak the filter in water containing detergent for about 1.5 hours, then rinse it off with clean water.
After cleaning, place the filter in a cool and ventilated place to dry, avoid direct sunlight or high temperature drying, so as not to damage the nylon material. If time is tight, low temperature drying can also be used, but the temperature needs to be controlled.
Before reinstalling the filter, check it for damage or deformation. If the filter cannot be used properly, replace it with a new one.
Although nylon mesh filters have better durability and washability, in order to ensure air quality, it is recommended to replace the filter regularly. The replacement interval can be determined based on the device environment and the manufacturer's suggestions
Note: other specifications can be customized according to requirements
OUR HAPPY CLIENT FROM 98+ COUNTRIES
QUESTIONS AND ANSWERS
Q1： Can You Cut Flat Before Rolling Up On The Paint Stop Filters?
A1： Most Of The Paint Stop Filters On The Market Are Cut Flat After Rolling Up Because It Is Very Easy Operate, There Will Be A Problem That The Edge Is Not Flat. Certainly, We Can Cut Flat Before Rolling Up, Which Can Be Up To 2.6m Wide.
Q2： How Did You Pack HEPA Filter?
A2： One Unit Is Packed With PE Bag Put In 5-layer Carton. If The Customer Is Worried About The Transportation Process, We Can According To The Requirements Of The Form Of Beating Bracket + Corner Protection + Wrapping Film Packing.
Q3： Have HEPA Filter Passed The DOP/PAO Leak Test?
A3： Sure, Our HEPA Filter Is 100% Able To Pass The PAO Test. Because We Will Do An Integrity Test Of Each HEPA Filter For Efficiency And Leakage Before Shipment And Provide A Corresponding Test Report. Any Leakage Will Be Regarded As Unqualified Products And Reworked. We Are Using MPPS Scan Test For HEPA Filter Integrity Test Which According To EN 1822 Standard.
The Scanning Tracks Will Cover The Area:
Inside Filter Material, Sealant, Filter Frame, Corners, Gasket, Seal Of The Filter Mounting Assembly, The Sealant Between Filter Frame And The Gasket
Q4： How Long Does It Usually Take For Me To Receive The Goods?
A4： Depends On Whether You Want To Do Customization Your Air Filters Or Not, And Depends On The Speed Of Customs Clearance And Logistics, But We Can Guarantee To Ship Regular Air Filter In Less Than 7-10 Business Days, And We Have Customers In Singapore Who Received The Goods In Less Than 2 Weeks After We Ship Out.
Q5： What Is The Standard And Certification Of Your Products?
A5： We Implement Our Production Process In Strict Accordance With The Standards Of EN779 And EN1822.
Q6： What Is The Main Material You Are Using For HEPA Filter?
A6： We Usually Use Mircofine Glassfiber Paper, But We Also Can Do Synthetic Type Nano Paper Or PTFE Paper Type.
