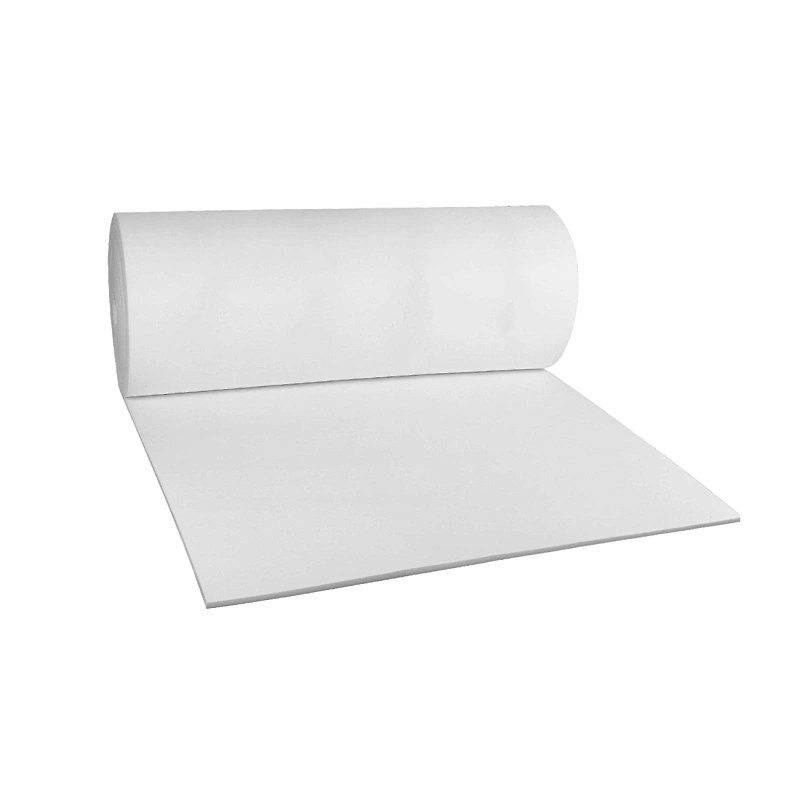

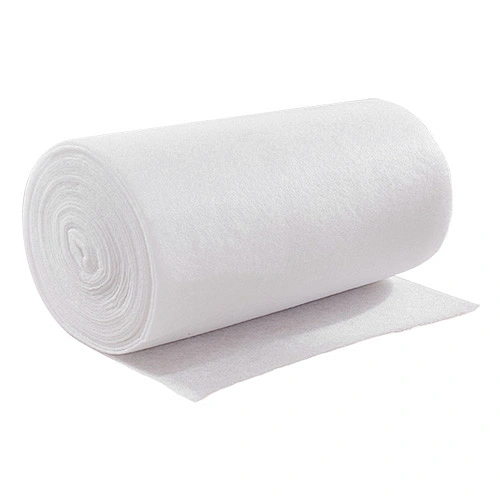

Ceiling Filter
Spray Booth Ceiling Filter Technical Specification
| Filter Material Specifications | |
|---|---|
| Filter Type | Spray Booth Ceiling Filter |
| Filter Class (EN 779) | G4, M5 |
| Main Material | Polyester Fiber (PET) |
| Flammability Rating | F1 (DIN 53438), B1(GB/T 17591-2006) |
| Temperature Resistance | 100°C |
| Temperature Short Peak | 120°C |
| Relative Humidity | 100% |
| Rec. Final Pressure Drop | 450 Pa. |
Dimensions & Technical Details
| Dimensions & Technical Details | ||||||||
|---|---|---|---|---|---|---|---|---|
| Filtration Class | Average Capture Rate | Thickness (mm) | Weight (g/m²) | Dust Holding Capacity (g/m²) | Air Velocity (m/s) | I.N.P (Pa) | F.N.P (Pa) | Scrim/Glue |
| M5 | 99% | 22±2 | 600 | 600 | 0.25 | 45 | 450 | Full Gule |
| 550 | 550 | 0.25 | 43 | 450 | Full Gule | |||
| 98% | 500 | 500 | 0.25 | 40 | 400 | Full Gule | ||
| 97% | 450 | 450 | 0.25 | 35 | 400 | Surface Gule | ||
| G4 | 95% | 420 | 420 | 0.25 | 30 | 400 | Surface Gule | |
| 90% | 260 | 350 | 0.25 | 28 | 400 | Without Gule | ||
Note: other specifications can be customized according to requirements
Features
▸ Extra-long service life
▸Fiberglass media
▸High burst resistance
▸Large surface area
▸Fits all commonly used filter frames
▸High efficiencies at low pressure drops
Application
▸Industrial Manufacturing: Spray Paint Booths & Paint Baking Booths
▸General Air Purification: Industrial Environments, Commercial Buildings, Residential Applications
▸Specialized Industries: Electronics Manufacturing, Pharmaceutical Manufacturing, Laboratories, etc.
Option: Cloth Surface/ Mesh Surface
What is Ceiling filter？
"Ceiling filter"can also be called"roof filter"or"overhead filter".

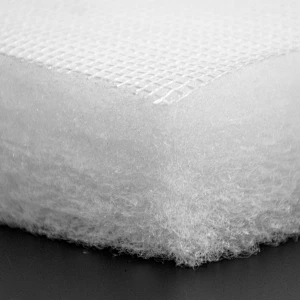

Ceiling filters are typically composed of polyester fibers. These filters often feature a gradient density layering structure and are fully impregnated with an adhesive tackifier to enhance filtration efficiency.
Why Paint Booth Ceiling Filter Media Rolls Must Have Fire Protection Certification?
In painting operations, the choice of spray booth ceiling filter is crucial, which directly affects the quality of spraying and the safety of the operating environment. A good quality ceiling filter is able to capture airborne dust and paint mist particles efficiently, ensuring that the air entering the paint booth is clean and dust-free, thus avoiding paint defects.
When looking for a ceiling filter for paint booths in particular, you need to look at its filtration efficiency and flame retardant properties. A high-performance spray booth ceiling filter will not only provide excellent air cleaning, but will also effectively prevent fire hazards and meet strict safety standards. By investing in the right ceiling filter, you are guaranteeing both the efficiency of your paint booth and the safety of your employees.
Customized Services
- Custom Sizes: Filters can be cut to fit specific booth dimensions.
- Material Options: Different materials and thicknesses can be tailored for specific applications
- Printing Logo.
OUR HAPPY CLIENT FROM 98+ COUNTRIES
QUESTIONS AND ANSWERS
Q1： Can You Cut Flat Before Rolling Up On The Paint Stop Filters?
A1： Most Of The Paint Stop Filters On The Market Are Cut Flat After Rolling Up Because It Is Very Easy Operate, There Will Be A Problem That The Edge Is Not Flat. Certainly, We Can Cut Flat Before Rolling Up, Which Can Be Up To 2.6m Wide.
Q2： How Did You Pack HEPA Filter?
A2： One Unit Is Packed With PE Bag Put In 5-layer Carton. If The Customer Is Worried About The Transportation Process, We Can According To The Requirements Of The Form Of Beating Bracket + Corner Protection + Wrapping Film Packing.
Q3： Have HEPA Filter Passed The DOP/PAO Leak Test?
A3： Sure, Our HEPA Filter Is 100% Able To Pass The PAO Test. Because We Will Do An Integrity Test Of Each HEPA Filter For Efficiency And Leakage Before Shipment And Provide A Corresponding Test Report. Any Leakage Will Be Regarded As Unqualified Products And Reworked. We Are Using MPPS Scan Test For HEPA Filter Integrity Test Which According To EN 1822 Standard.
The Scanning Tracks Will Cover The Area:
Inside Filter Material, Sealant, Filter Frame, Corners, Gasket, Seal Of The Filter Mounting Assembly, The Sealant Between Filter Frame And The Gasket
Q4： How Long Does It Usually Take For Me To Receive The Goods?
A4： Depends On Whether You Want To Do Customization Your Air Filters Or Not, And Depends On The Speed Of Customs Clearance And Logistics, But We Can Guarantee To Ship Regular Air Filter In Less Than 7-10 Business Days, And We Have Customers In Singapore Who Received The Goods In Less Than 2 Weeks After We Ship Out.
Q5： What Is The Standard And Certification Of Your Products?
A5： We Implement Our Production Process In Strict Accordance With The Standards Of EN779 And EN1822.
Q6： What Is The Main Material You Are Using For HEPA Filter?
A6： We Usually Use Mircofine Glassfiber Paper, But We Also Can Do Synthetic Type Nano Paper Or PTFE Paper Type.
