Product features:

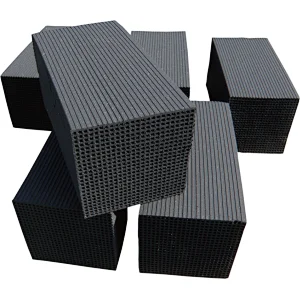

· the honeycomb activated carbon substrate structure is a three-dimensional structure, which increases the contact time between gas and lives carbon And the contact area, thus effectively improving the adsorption efficiency;
· developed voids, larger than the surface and lower resistance;
· acid and alkaline gas resistance;
· purification and adsorption of formaldehyde, toluene, and other harmful gases.
Product specification:
| Model | size(mm) | Bore inner diameter(mm) | Number of holes | End-use temperature | Desorption temperature | Air velocity(m/s) |
|
| RT-HSAC50 | 50*50*50 | 1.5*1.5 | 400 | ≥60℃ | 60-150℃ | <0.5 |
| RT-HSAC50 | 50*50*100 | 1.5*1.5 | 400 | ≥60℃ | 60-150℃ | <0.5 |
| RT-HSAC100 | 100*100*50 | 1.5*1.5 | 1600 | ≥60℃ | 60-150℃ | <0.5 |
| RT-HSAC100 | 100*100*100 | 1.5*1.5 | 1600 | ≥60℃ | 60-150℃ | <0.5 |
Note: other specifications can be customized according to requirements
Material properties

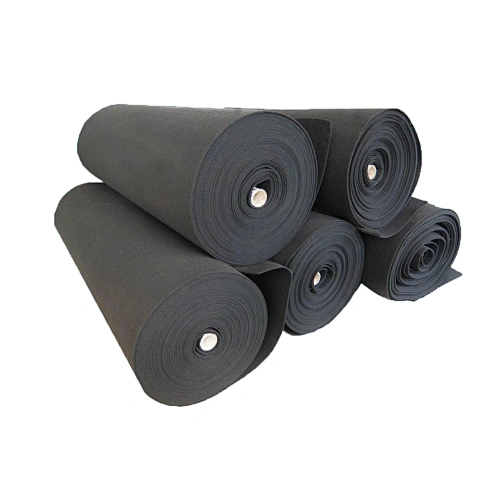

| Filter material | Activated carbon filter cotton |
| Initial resistance | 30Pa |
| Final resistance | 250Pa |
| temperature-resistant | ≤100℃ |
| Temp.short peaks | ≤120℃ |
| Moisture resistance (relative humidity) | ≤80%RH |
