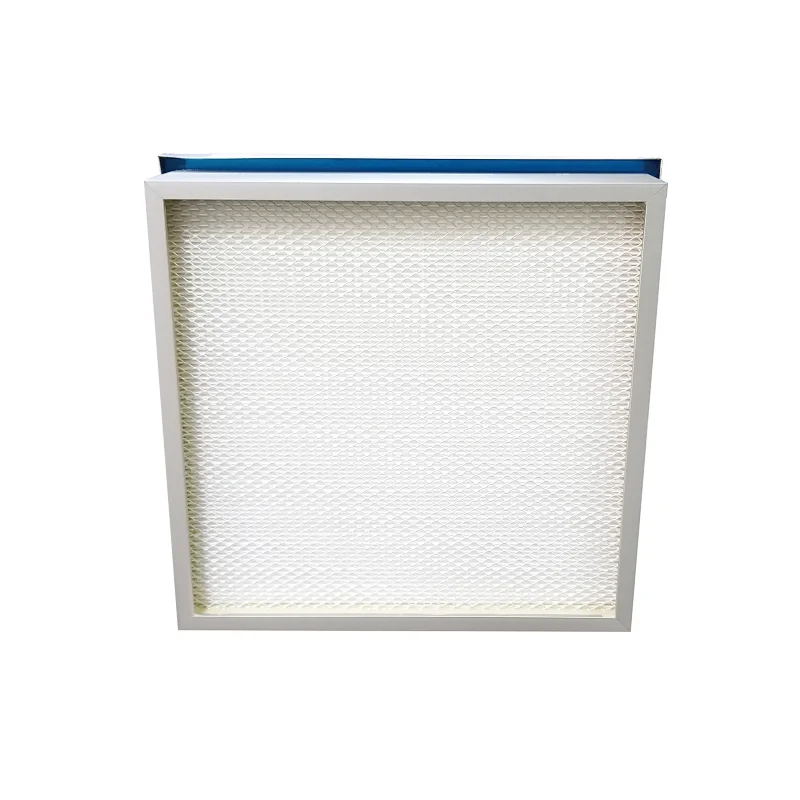

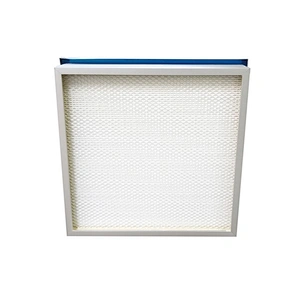

Tank HEPA Filter

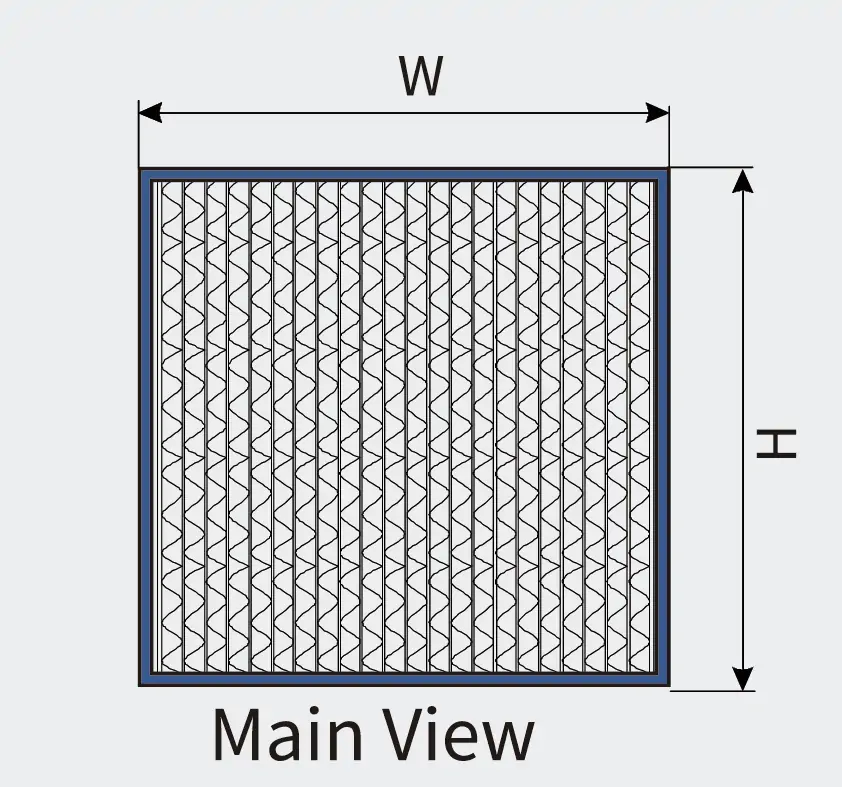

Construction
Matters needing attention
Application
▸Pharmaceutical/Biosafety: GMP workshop, vaccine production, P3/P4 laboratory.
▸Hospital/Laboratory: operating room, sterile ward, precision instrument room.
Features
Filtration efficiency ≥99.99% for 0.3μm particles (H13/H14 class, in accordance with EN1822 or GB/T 13554 standards).
The liquid tank glue automatically fills the tiny gap between the frame and the mounting frame to avoid side leakage of unfiltered air.
The damping property of the liquid groove adhesive can reduce the influence of equipment vibration on the sealing of the filter, and is suitable for the scene of large fan vibration.
The diaphragm structure enhances the mechanical strength of the filter material and delays the collapse of the filter material caused by wind pressure.
| Technical Specification | ||||||||||
| Filter Type | Deep Pleated Filter | |||||||||
| Filter Class (EN 1822) | E10, E11, E12, H13, H14 | |||||||||
| Filter Media & Seperator | Microfine Glass Fiber / PP HEPA Filter Paper | |||||||||
| Frame Material | Aluminium / Galvanised / Stain Steel | |||||||||
| Sealant | Gel Steal | |||||||||
| Final Resistance | 350Pa (Suggestion) | |||||||||
| Temperature Resistance | 80°C | |||||||||
| Humidity Resistance (Relative Humidity) | 100%RH | |||||||||
Dimensions & Technical Details | ||||||||||||
Depth （mm） | Size (mm) | Rated Airflow (m³/h) | Filter Area (m²) | Initial Resistance(Pa) | ||||||||
| H14 | ||||||||||||
| Box Type 150mm Depth | ||||||||||||
| 150 | 305×610 | 500/700 | 4.25 | <200/240 | ||||||||
| 610×610 | 1000/1500 | 7.97 | ||||||||||
| 1220×610 | 2000/2800 | 15.68 | ||||||||||
| 1220×915 | 2800/3800 | 23.60 | ||||||||||
| Box Type 220mm Depth | ||||||||||||
| 220 | 484×484 | 1000/1600 | 8.20 | <200/240 | ||||||||
| 305×610 | 800/1000 | 6.76 | ||||||||||
| 610×610 | 1500/2100 | 12.68 | ||||||||||
| 1220×610 | 2800/4000 | 24.95 | ||||||||||
| 1220×915 | 3800/5400 | 37.54 | ||||||||||
| Box Type 292mm Depth | ||||||||||||
| 292 | 305×610 | 900/1300 | 9.55 | <200/240 | ||||||||
| 610×610 | 1800/2600 | 17.90 | ||||||||||
| 1220×610 | 2400/4800 | 35.21 | ||||||||||
| 1220×915 | 4200/6500 | 52.99 | ||||||||||
Comparison with Conventional Filters
| Comparison Item | Deep Pleated Tank HEPA Filter | Deep Pleated HEPA Filter |
| Sealing Method | Sealed with liquid slot adhesive, no air leakage risk | Sealed by rubber pad compression, possible gaps |
| Shock Resistance | Excellent, liquid adhesive absorbs vibration | General, long-term vibration may cause seal aging |
| Installation Requirements | Requires a matching special liquid slot frame | Standard flange frame, simpler installation |
| Cost | Higher (sealing adhesive and special frame) | Lower |
OUR HAPPY CLIENT FROM 98+ COUNTRIES

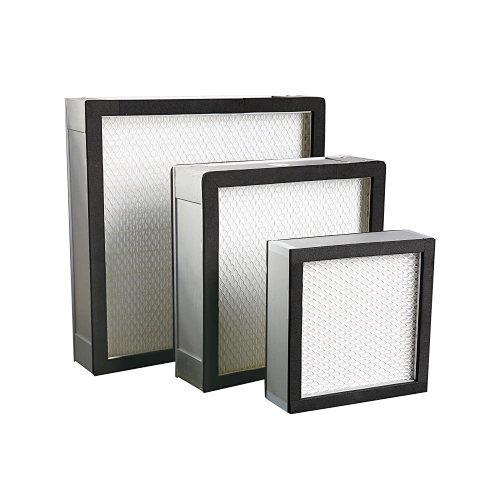

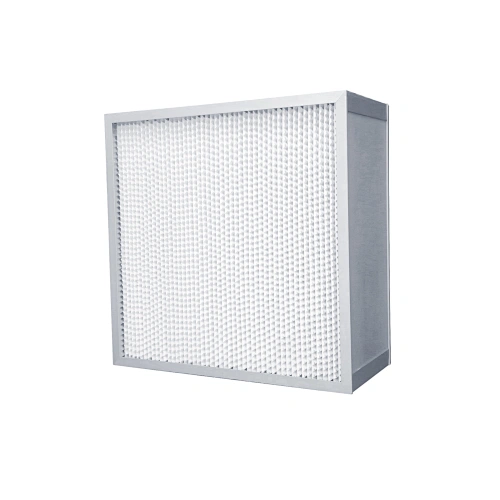

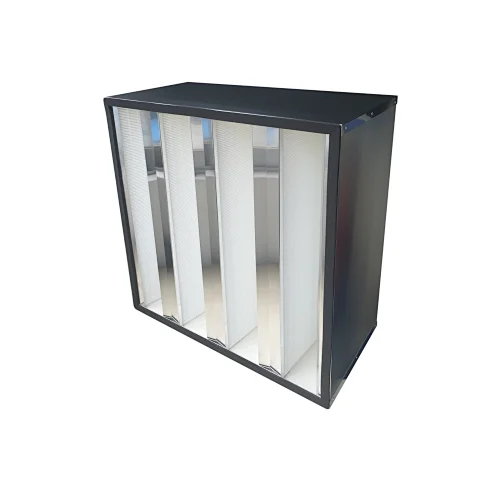

SIMILAR PRODUCTS
QUESTIONS AND ANSWERS
Q1： Can You Cut Flat Before Rolling Up On The Paint Stop Filters?
A1： Most Of The Paint Stop Filters On The Market Are Cut Flat After Rolling Up Because It Is Very Easy Operate, There Will Be A Problem That The Edge Is Not Flat. Certainly, We Can Cut Flat Before Rolling Up, Which Can Be Up To 2.6m Wide.
Q2： How Did You Pack HEPA Filter?
A2： One Unit Is Packed With PE Bag Put In 5-layer Carton. If The Customer Is Worried About The Transportation Process, We Can According To The Requirements Of The Form Of Beating Bracket + Corner Protection + Wrapping Film Packing.
Q3： Have HEPA Filter Passed The DOP/PAO Leak Test?
A3： Sure, Our HEPA Filter Is 100% Able To Pass The PAO Test. Because We Will Do An Integrity Test Of Each HEPA Filter For Efficiency And Leakage Before Shipment And Provide A Corresponding Test Report. Any Leakage Will Be Regarded As Unqualified Products And Reworked. We Are Using MPPS Scan Test For HEPA Filter Integrity Test Which According To EN 1822 Standard.
The Scanning Tracks Will Cover The Area:
Inside Filter Material, Sealant, Filter Frame, Corners, Gasket, Seal Of The Filter Mounting Assembly, The Sealant Between Filter Frame And The Gasket
Q4： How Long Does It Usually Take For Me To Receive The Goods?
A4： Depends On Whether You Want To Do Customization Your Air Filters Or Not, And Depends On The Speed Of Customs Clearance And Logistics, But We Can Guarantee To Ship Regular Air Filter In Less Than 7-10 Business Days, And We Have Customers In Singapore Who Received The Goods In Less Than 2 Weeks After We Ship Out.
Q5： What Is The Standard And Certification Of Your Products?
A5： We Implement Our Production Process In Strict Accordance With The Standards Of EN779 And EN1822.
Q6： What Is The Main Material You Are Using For HEPA Filter?
A6： We Usually Use Mircofine Glassfiber Paper, But We Also Can Do Synthetic Type Nano Paper Or PTFE Paper Type.
